Our most lightweight pinch valve made of white POM plastic. Unmatched in price and performance. The ideal solution for dosing technology, food processing, and mobile systems.

Material Specifications

HOUSING

POM plastic (polyoxymethylene), natural white

Sleeve | Quality:

Various options available

COVER / CONNECTION:

POM plastic (polyoxymethylene), natural white

SCREWS

Galvanized steel

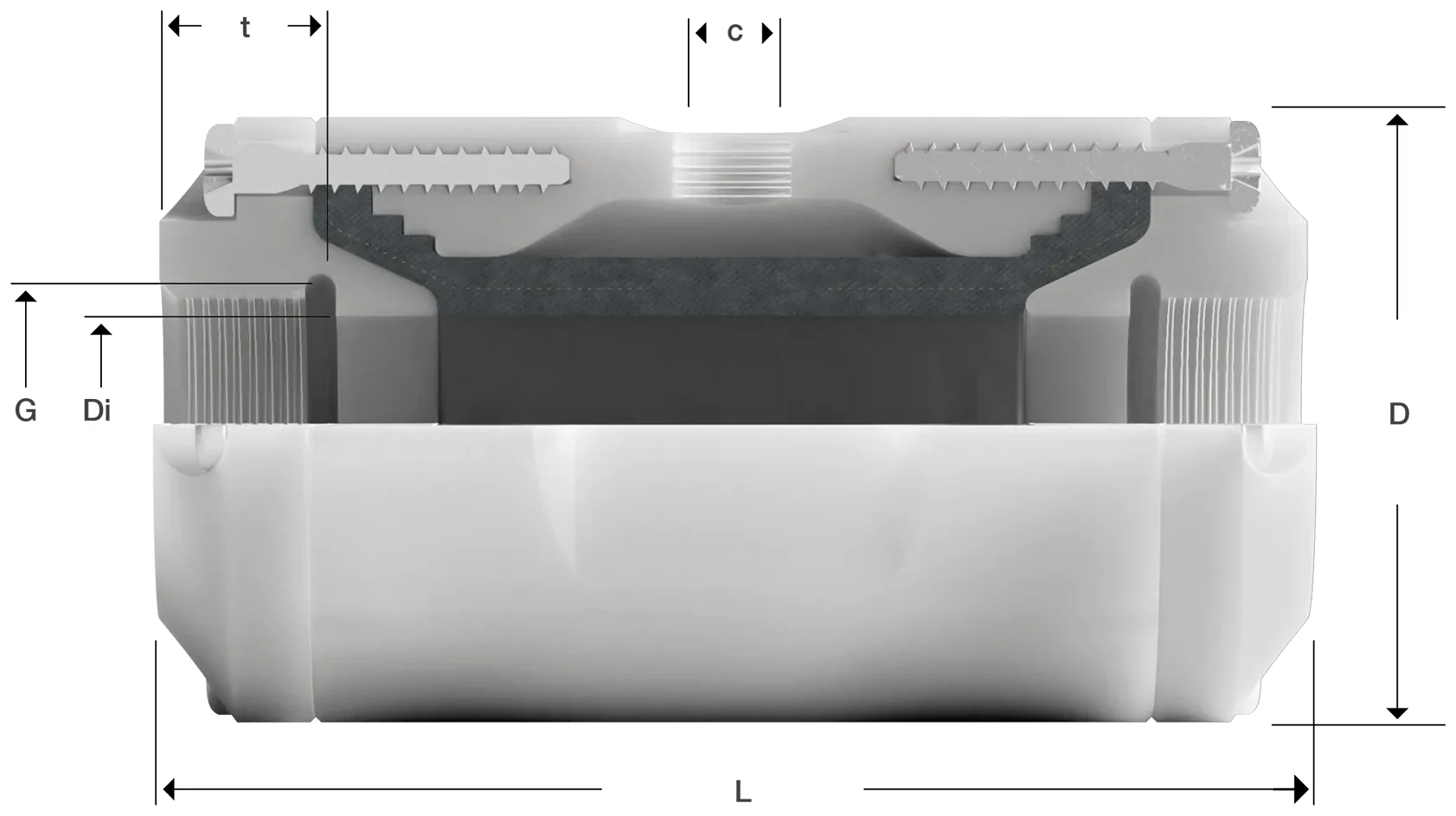

Dimensions

Swipe sideways for all columns →

Scroll sideways for all columns →

DN	Di	G	t	D	L	c	Vol. l¹	kg
10	10	G 3/8"	12	44	80	G 1/4"	0,03	0,14
15	15	G 1/2"	14	50	95	G 1/4"	0,04	0,20
20	20	G 3/4"	17	58	110	G 1/4"	0,05	0,30
25	25	G 1"	20	65	125	G 1/4"	0,07	0,40

Vol. l¹ – Control volume for closed valve

Article Numbers

HO-Matic pinch valve series 00 – technical details

Applications & Benefits

The Cost-Effective Solution for Dosing Technology
‍

Series 00 proves that industrial high performance doesn't have to be heavy. Manufactured from high-quality, natural white POM plastic, this valve offers excellent chemical resistance and hygiene. Weighing from just 0.14 kg, it is the ideal solution for weight-sensitive systems.

‍

Typical Applications:

Dosing of food products
Filling of powders
Mobile equipment and dosing systems

‍

Key Benefits:

Full bore product flow matching the nominal size
No clogging, no constrictions, and no dead zones
Lightning-fast opening and closing
Largely cavity-free (no product residue buildup in the valve)
100% leak-tight / gas-tight
Maintenance-friendly valve with rapid sleeve replacement

‍

Technical Documentation

All dimensions, article numbers, and data.

Datasheet
CAD
Spare Parts
Manual
