Our top seller in a square design and short installation length. The compact solution made of natural white POM, specifically developed for the demands of powder coating and the paint industry.

Material Specifications

HOUSING

POM plastic (polyoxymethylene), natural white

Sleeve | Quality:

Various options available

COVER / CONNECTION:

Threaded cover made of POM plastic (polyoxymethylene), natural white

SCREWS

Galvanized steel

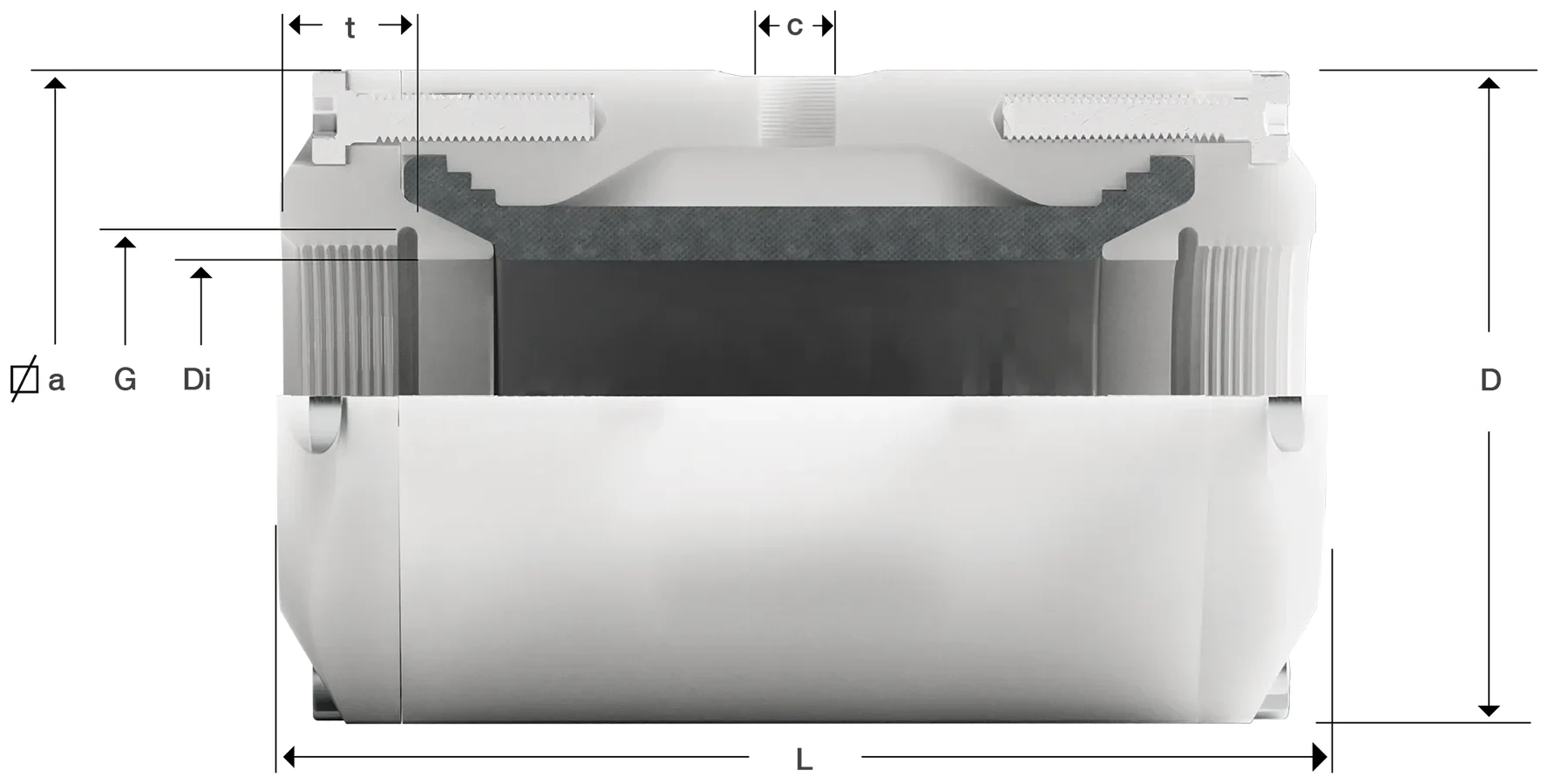

Dimensions

Swipe sideways for all columns →

Scroll sideways for all columns →

DN	Di	G	t	D	L	c	a	Vol. l¹	kg
32	32	G 1 1/4"	20	83	140	G 1/4"	70	0,10	0,60
40	40	G 1 1/2"	20	95	150	G 1/4"	80	0,13	0,90

Vol. l¹ – Control volume for closed valve

Article Numbers

HO-Matic pinch valve series 20 – technical details

HO-Matic pinch valve series 20 for the paint and powder industry

Applications & Benefits

The Square Top Seller for Paint and Powder

Series 20 is our top seller in a square design, standing out with its exceptionally short installation length. Manufactured from robust POM plastic, it integrates seamlessly even into systems with extremely tight space constraints.

‍

Typical Applications:

Powder coating
Paint industry
Systems with limited space constraints (short installation length)

‍

Key Benefits:

Full bore product flow matching the nominal size
No clogging, no constrictions, and no dead zones
Lightning-fast opening and closing
100% leak-tight / gas-tight
Assembled silicone-free as standard

‍

Technical Documentation

All dimensions, article numbers, and data.

Datasheet
CAD
Spare Parts
Manual
