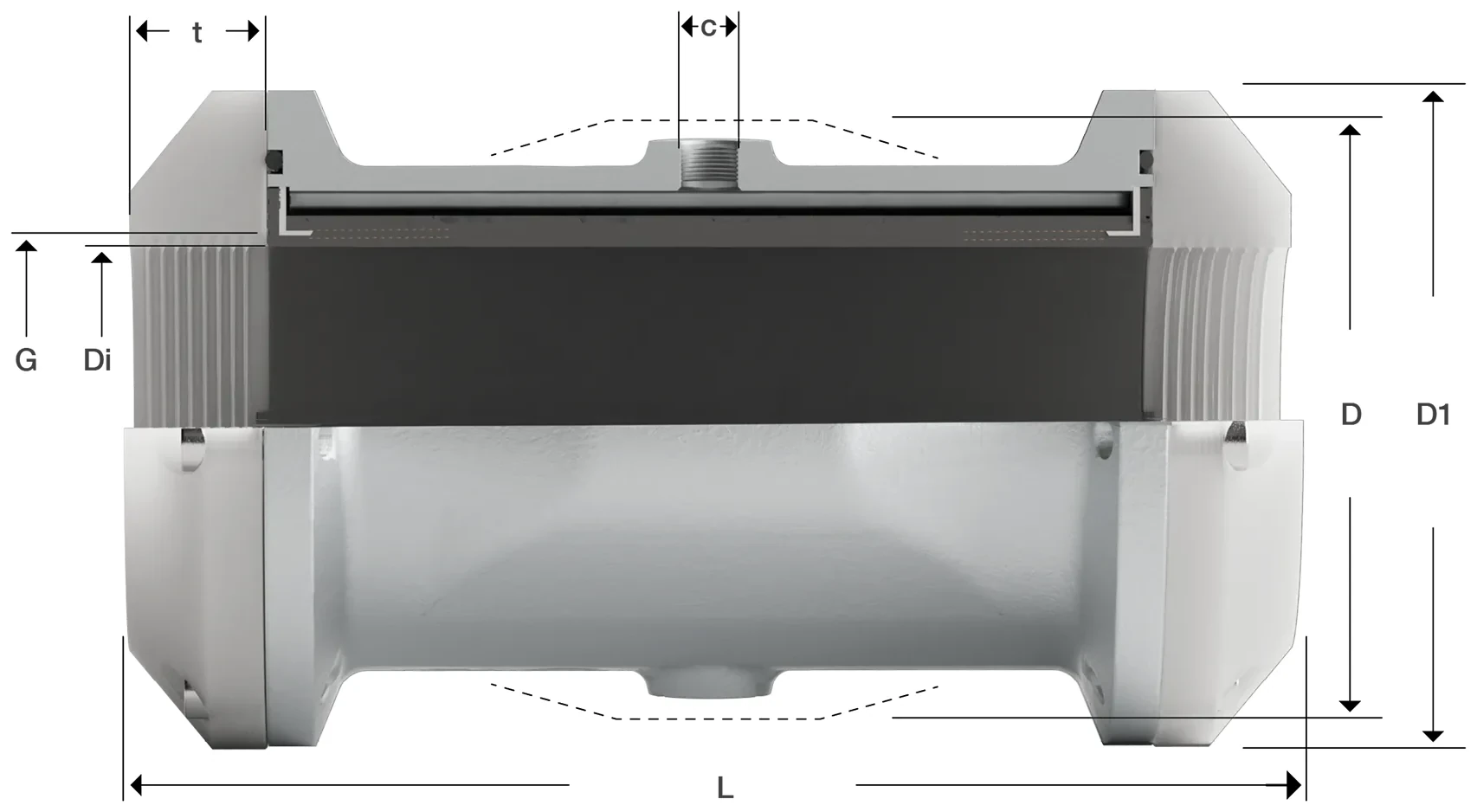

| DN | Di | G | t | D | D1 | L | c | Vol. l¹ | kg |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 50 | G 2" | 25 | 100 | 112 | 215 | G 1/4" | 0,22 | 2,10 |
| 65 | 65 | G 2 1/2" | 27,5 | 124 | 134 | 240 | G 1/4" | 0,49 | 2,80 |
| 80 | 80 | G 3" | 32,5 | 152 | 154 | 290 | G 1/4" | 0,95 | 4,20 |
Vol. l¹ – Control volume for closed valve
Series 40, made of powder-coated cast aluminum, is the ideal solution for extremely abrasive media and fragile products. The pinch valve offers a full bore product flow matching the nominal size and prevents clogging, constrictions, and dead zones. With the optional conductive POM-ELS threaded cover, this patented series is also available as an ATEX version for hazardous areas.
