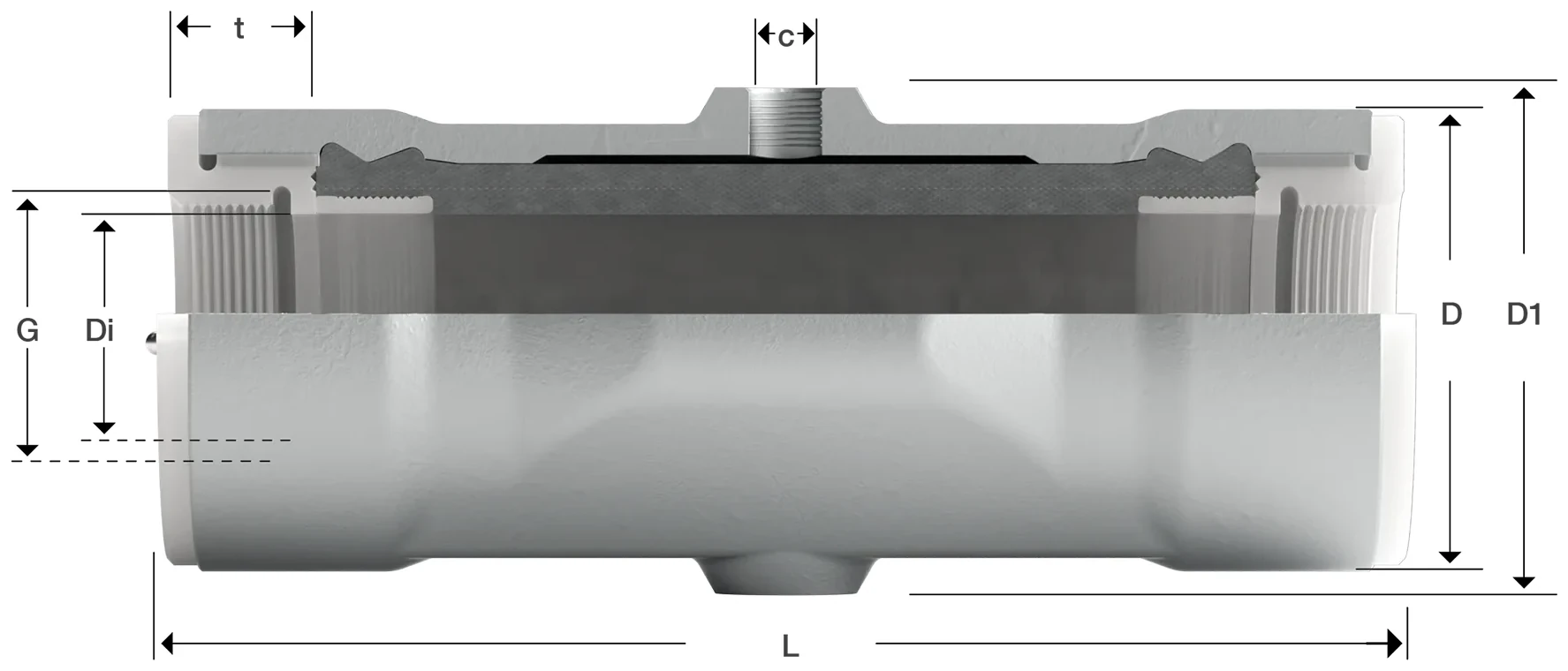

| DN | Di | G | t | D | D1 | L | c | Vol. l¹ | kg |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 40 | G 1 1/2" | 20 | 75 | 86 | 200 | G 1/4" | 0,13 | 1,00 |
| 50 | 50 | G 2" | 22 | 89 | 98 | 213 | G 1/4" | 0,24 | 1,50 |
| 65 | 65 | G 2 1/2" | 24 | 110 | 122 | 248 | G 1/4" | 0,53 | 2,30 |
Vol. l¹ – Control volume for closed valve
Series 50 is the robust all-round valve made of silver-gray powder-coated cast aluminum. It has been popular for decades and has made a name for itself through its exceptional durability. Thanks to the resilient design combined with high-strength POM components for the threaded and clamping rings, it particularly demonstrates its strengths in demanding industries. The pinch valve offers a full bore product flow and is extremely maintenance-friendly.
