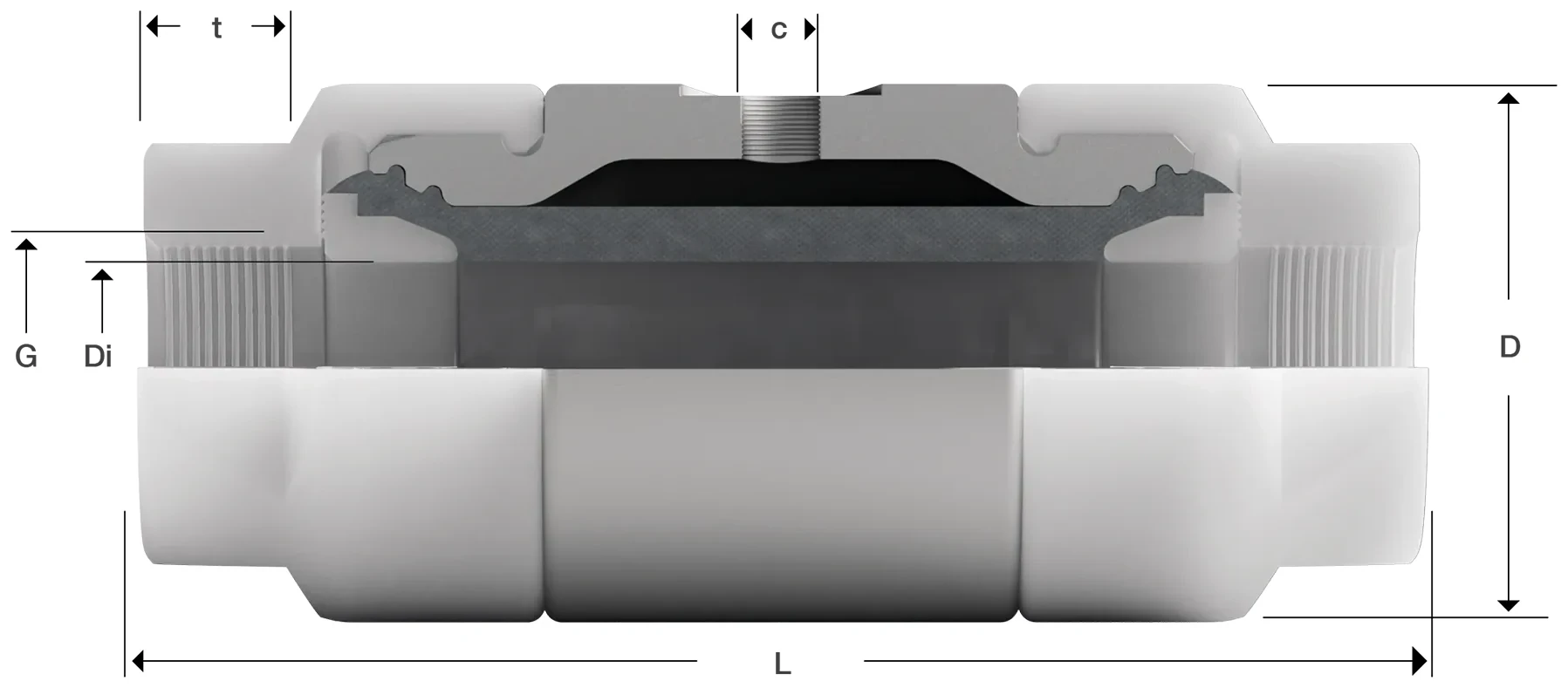

| DN | Di | G | t | D | L | c | Vol. l¹ | kg |
|---|---|---|---|---|---|---|---|---|
| 15 | 15 | G 1/2" | 14 | 52 | 120 | G 1/8" | 0,04 | 0,35 |
| 20 | 20 | G 3/4" | 16 | 59 | 140 | G 1/8" | 0,05 | 0,50 |
| 25 | 25 | G 1" | 20 | 65 | 150 | G 1/8" | 0,07 | 0,60 |
| 32 | 32 | G 1 1/4" | 22 | 80 | 180 | G 1/8" | 0,10 | 1,00 |
Vol. l¹ – Control volume for closed valve
For decades, Series 10 has proven itself in the harshest environments. Where vibrations, temperature fluctuations, and mechanical stress cause standard valves to fatigue, the combination of a clear anodized aluminum housing and impact-resistant POM components guarantees absolute reliability. An absolute favorite in rail transport, equipment, and vehicle manufacturing.
