Pinch Valves Series 60: The Miniature Stainless Steel Valve

NOMINAL SIZES
G 1/4" (DN 06)
MAX. OPERATING PRESSURE
max. 4 bar
APPLICATIONS
Medical technology and dosing
Our 6mm stainless steel gem. Specifically suited for medical technology and dosing.
Material Specifications
HOUSING
Stainless steel 1.4404
Sleeve | Quality:
Various options available
COVER / CONNECTION:
Threaded connection made of stainless steel 1.4404
O-Ring
Nitrile rubber NBR
CLAMPING CONE
POM plastic (polyoxymethylene), natural white

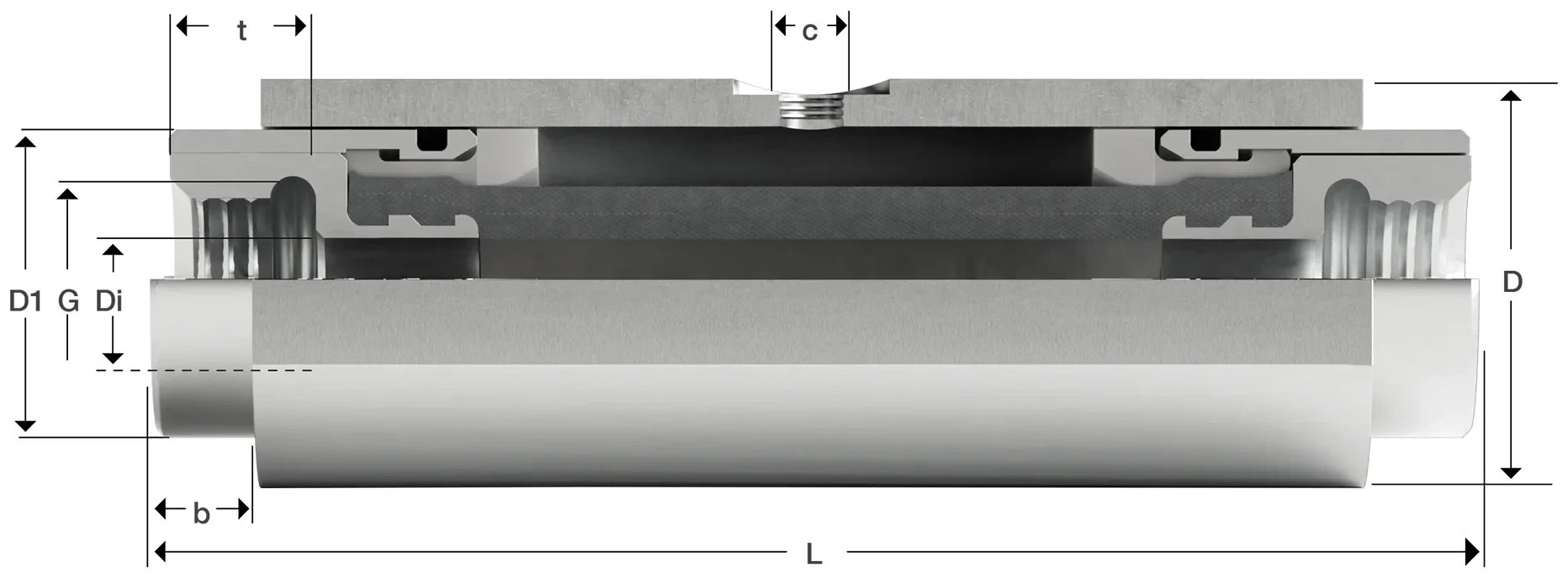

Dimensions
Article Numbers
Applications & Benefits

Compact Precision in Stainless Steel

Series 60 is our miniature gem, featuring the smallest nominal size in our range. Manufactured from high-quality stainless steel 1.4404 for both housing and connection, this compact pinch valve offers the highest chemical resistance and hygiene. Combined with the POM clamping cone, it is the optimal shut-off solution for exact dosing processes and highly sensitive applications in medical technology. It guarantees absolutely precise switching times in the smallest installation space.

Typical Applications
  • Medical technology
  • Exact dosing tasks
  • Compact machine and laboratory setups

Key Benefits
  • Extremely compact design (6mm nominal size)
  • High-quality stainless steel housing (1.4404)
  • Full bore product flow without constrictions
  • 100% leak-tight / gas-tight
  • Maintenance-friendly valve with rapid sleeve replacement
  • Assembled silicone-free as standard

Technical Documentation
All dimensions, article numbers, and data.
